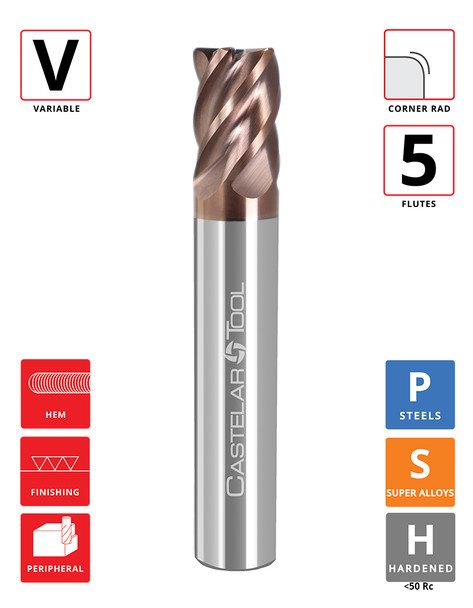

0.75"Ø x 1.5" LOC x 4" OAL - 0.03" Rad - ALROC-S Coated - V540 5F Carbide Variable End Mill

CAD$147.64
SKU:
V540-3-0750-15-40-030-ARS
Series:
V540
Flutes:
5
Cutting Diameter:
0.75"
Length of Cut:
1.5"
Overall Length:
4"
Shank Diameter:
0.75"
End Style:
0.03" Corner Radius
Coating:
ALROC-S
Center Cutting:
Yes"
Shank Tolerance:
h6
In Stock & Ready To Ship!
Current Stock:Only left: 29

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax

Description

The V540 series is a state of the art 5F end mill featuring full variable flute geometry, eccentric relief, and ALROC-S coating for maximum cutting performance in steels up to 50Rc, cast irons, and super alloys. This tool is particularly suitable for adaptive machining strategies.
